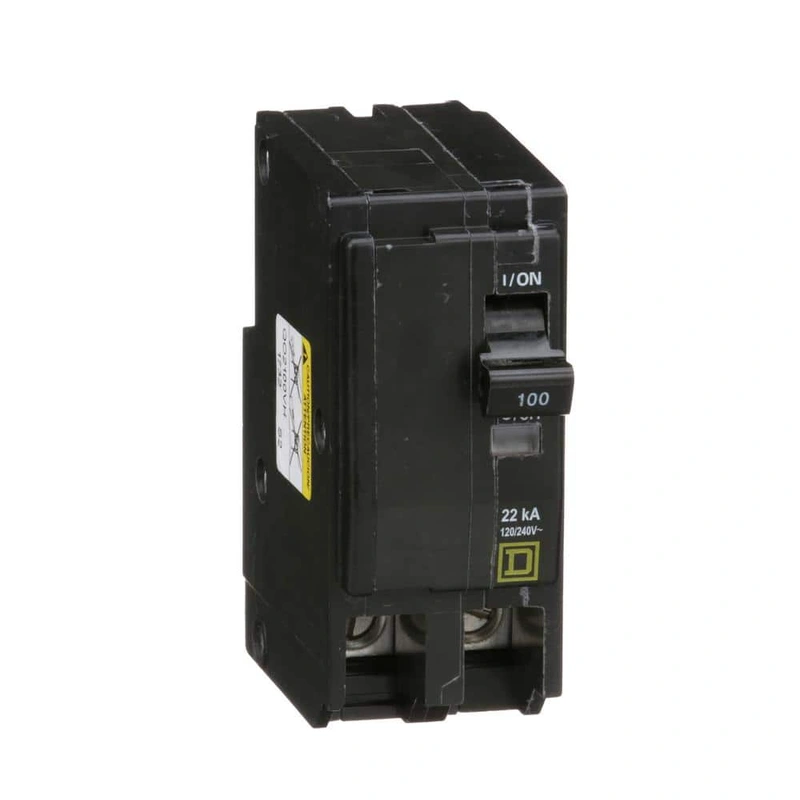

100 Amp 22kA 2-Pole Circuit Breaker The Square D QO 100 Amp 22kA 2-Pole Plug-In Circuit Breaker provides robust overcurrent protection for AC and DC systems. Its compact design features the exclusive Visi-Trip indicator for quick identification of tripped
The Square D QO 100 Amp 22kA 2-Pole Plug-In Circuit Breaker provides robust overcurrent protection for AC and DC systems. Its compact design features the exclusive Visi-Trip indicator for quick identification of tripped breakers, making it a reliable choice for electrical safety. Crafted to fit Square D QO panels, this breaker ensures a fast, seamless installation for all kinds of applications.
| Specification | Details |
|---|---|
| AIC Rating | 22000 |
| Breaker Type | Main Breaker |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Pack Size | 1 |
| Product Weight (lb.) | 0.65 lb |
| Series Type | QO |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | CSA Certified,UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed. |
| Product Depth (in.) | 2.91 in |
| Product Height (in.) | 3.50 in |
| Product Width (in.) | 1.5 in |
Q: Is this circuit breaker compatible with all Square D panels?
A: This breaker is specifically designed to be compatible with Square D QO load centers, panels, and other compatible devices accepting 2-pole plug-in breakers.
Q: How does the Visi-Trip indicator work?
A: The Visi-Trip indicator provides a visual indication when the breaker has tripped, allowing for quick identification and reducing the time needed to reset and restore service.
Q: Can this breaker be used in both residential and commercial settings?
A: Yes, it is suitable for both settings as long as it is within the amperage limits and panel compatibility guidelines.
Q: What is the warranty for this circuit breaker?
A: Square D provides a lifetime warranty for defects in materials and workmanship for this breaker when installed in a residential QO load center.
Q: What is the breaking capacity of this breaker?
A: The breaker has a 22 kA breaking capacity, which is suitable for interrupting high levels of fault current.
The Square D QO Circuit Breaker revolutionizes safety and reliability for your electrical system, harmonizing functionality with form. Its minimalist compact design artfully saves space, while the vivid Visi-Trip indicator turns monitoring into a spirited dance of light and assurance. Ideal for a palette of home or professional settings, the breaker delicately balances strength and subtlety, ensuring a seamless integration into any environment. Its not just a breaker; its the heart of your electrical mastery, promising safety with elegance.
Upgrade your electrical panel with the unmatched reliability of Square D’s QO Circuit Breaker and experience peace of mind today.
