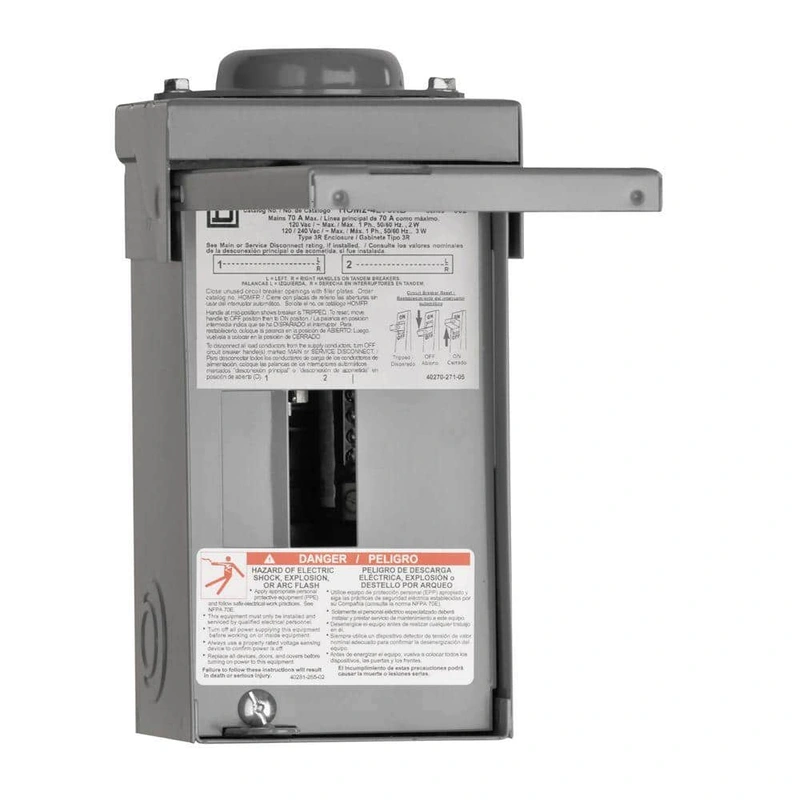

Homeline 70 Amp Outdoor Load Center The Square D Homeline 70 Amp Outdoor Main Lug Load Center is engineered for fast installation and reliable performance. Designed for both residential and commercial power distribution, this UL-listed load center includes
The Square D Homeline 70 Amp Outdoor Main Lug Load Center is engineered for fast installation and reliable performance. Designed for both residential and commercial power distribution, this UL-listed load center includes a rainproof cover and aluminum bus bar for durability in outdoor applications.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Non-Neutral |
| Electrical Product Type | Main Lug/ Main Lug Kit |
| Indoor/Outdoor | Outdoor |
| Maximum Amperage (A) | 70 A |
| Mounting Type | Surface |
| NEMA Configuration | NEMA 3R |
| Number of Circuits | 4 |
| Number of Spaces | 2 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 5.05 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Product Depth (in.) | 4 in |
| Product Height (in.) | 9.38 in |
| Product Width (in.) | 4.88 in |
Q: Is the load center suitable for both residential and commercial applications?
A: Yes, the Homeline 70 Amp Load Center is UL listed and suitable for both residential and commercial power distribution needs.
Q: Can this load center be installed indoors?
A: While it is designed for outdoor use, it can be installed indoors; however, this may not take full advantage of its weatherproof features.
Q: How many circuits does the load center support?
A: This model supports up to 4 circuits.
Q: What surge protection options are available?
A: The load center accommodates a plug-on secondary surge arrestor, which is sold separately.
Q: Does the product come with a warranty?
A: Yes, Square D offers a 10-year warranty covering defects in material and workmanship under normal residential care and proper usage.
Harness the power of refined functionality with the Square D Homeline Load Center, transforming utility into an art form. Its sleek, weather-resistant design not only performs under pressure but enhances the aesthetic of your outdoor environments. Envision this load center subtly integrated into your garden’s landscape, camouflaged yet pivotal. With its sophisticated structure and design, it is a testament to the symbiosis of necessity and style, redefining what an essential element of your home electrical system should represent.
Ensure reliable power distribution with the sturdy and efficient Homeline 70 Amp Outdoor Load Centersecure yours today.
