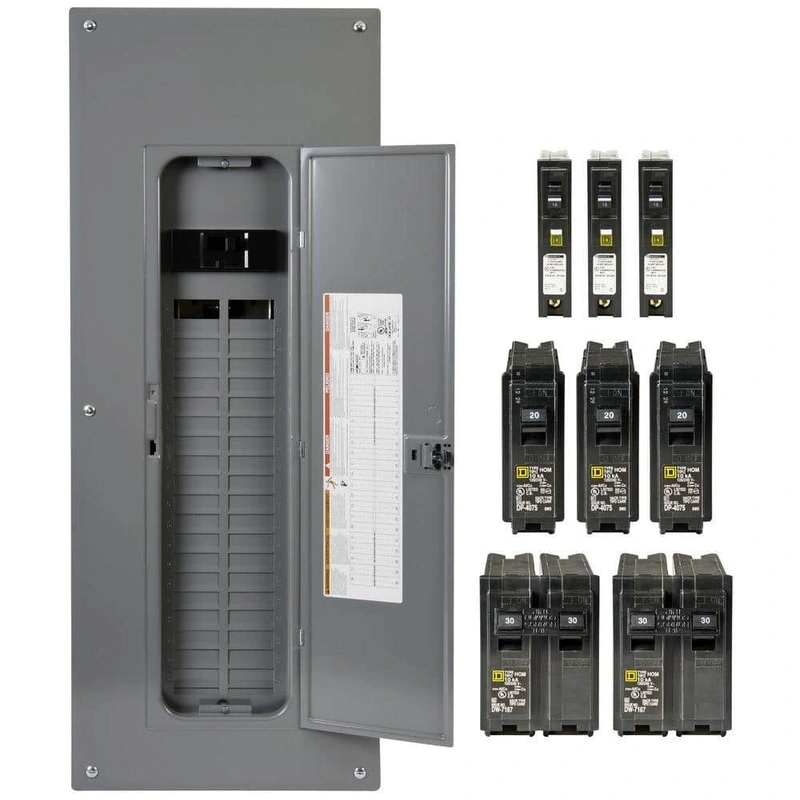

Homeline 200 Amp Indoor Load Center with CAFI Breakers Optimize your power distribution setup with the Square D Homeline 200 Amp Indoor Main Breaker Load Center. This comprehensive package includes essential arc fault breakers and is engineered to save tim
Optimize your power distribution setup with the Square D Homeline 200 Amp Indoor Main Breaker Load Center. This comprehensive package includes essential arc fault breakers and is engineered to save time and reduce wiring complexity. Ideal for both professional contractors and DIY enthusiasts, it guarantees reliability with a robust aluminum bus bar design.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Neutral |
| Included | Circuit Breaker,Cover |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 200 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 80 |
| Number of Pieces | 9 |
| Number of Spaces | 40 |
| Product Weight (lb.) | 38 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 39.37 in |
| Product Width (in.) | 14.25 in |
Q: Can this load center be used for both residential and commercial applications?
A: Yes, the Square D Homeline Load Center is UL listed for both residential and commercial power distribution.
Q: How do I install the load center for overhead or underground feed?
A: Simply rotate the load center before installing to switch between overhead and underground feed.
Q: Are there any specific breakers that must be used with this load center?
A: This load center is designed for use with Square D Homeline circuit breakers to ensure optimal performance and safety.
Q: Is it difficult to install the included CAFI breakers?
A: No, the load center comes with a fully distributed neutral bar that simplifies the installation of Plug-On Neutral CAFI breakers, making the process straightforward.
Q: What does the warranty cover for this load center?
A: Square D offers a 10-year warranty covering defects in material and workmanship for residential applications, provided it is used with appropriate Homeline circuit breakers.
Elevate the functionality of your space with the sophisticated and efficient Square D Homeline Load Center. Its dynamically engineered design not only simplifies installation but also contributes to a seamless power management aesthetic. Ideal for modern interiors, the load centers sleek, unobtrusive presence can be tastefully integrated behind closed doors or can complement a utility room’s industrial chic vibe. There’s no better way to marry utility with style, ensuring that robust elegance becomes a staple in orchestrating refined, luxurious living.
Transform your power distribution with ease and precisionexplore the Square D Homeline 200 Amp Load Center today!
