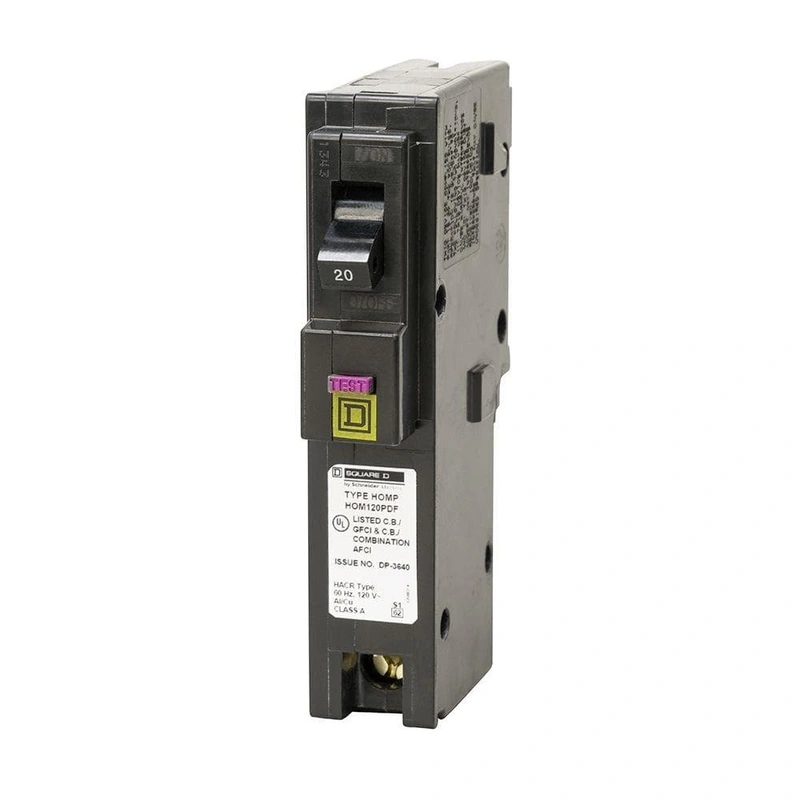

Square D Homeline 20 Amp Dual Function Circuit Breaker The Square D Homeline 20 Amp Single-Pole Circuit Breaker offers dual protection with both AFCI and GFCI functionalities in a single device. Designed for easy installation with Plug-On Neutral panels, t
The Square D Homeline 20 Amp Single-Pole Circuit Breaker offers dual protection with both AFCI and GFCI functionalities in a single device. Designed for easy installation with Plug-On Neutral panels, this space-saving breaker ensures compliance with the National Electric Code while enhancing safety in residential electrical systems.
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Pigtail |
| Interruption Type | AFCI/GFCI |
| Maximum Amperage (A) | 20 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Pack Size | 9 |
| Product Weight (lb.) | 0.28 lb |
| Series Type | Homeline |
| Trip Unit | Electronic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 1 in |
Q: Is this circuit breaker compatible with all Square D panels?
A: No, it is specifically designed for use with Square D’s Homeline Plug-On Neutral load centers that are Series 4 and newer.
Q: How does the dual function feature improve safety?
A: By integrating both arc fault and ground fault protection, this breaker not only prevents electrical fires but also guards against electric shock hazards, enhancing overall safety.
Q: What is the process for installing this breaker?
A: Insert the breaker into an empty slot in the panel, connect it to the neutral bar without pigtails, and complete the wiring to the circuit. Ensure to power off the main breaker before starting.
Q: Does the product come with a warranty?
A: Yes, Square D offers a limited lifetime warranty covering defects in materials and workmanship under normal usage conditions in residential settings.
Q: What amperage is this breaker rated for?
A: This breaker has a maximum amperage rating of 20 A, suitable for typical residential circuits.
Embrace the fusion of advanced technology and sleek design with the Square D Homeline Circuit Breaker, a vital element in modern home electrical systems. Its innovative Plug-On Neutral design not only simplifies installation but also echoes the sophistication of a well-planned space. Imagine these breakers as the unseen guardians of your haven, seamlessly protecting your electrical circuits while maintaining an organized aesthetic. This product is indispensable for those who desire both safety and elegance integrated into their living environment.
Upgrade your homes electrical safety with the Square D Homeline Dual Function Circuit Breaker today, a smart investment for peace of mind.
