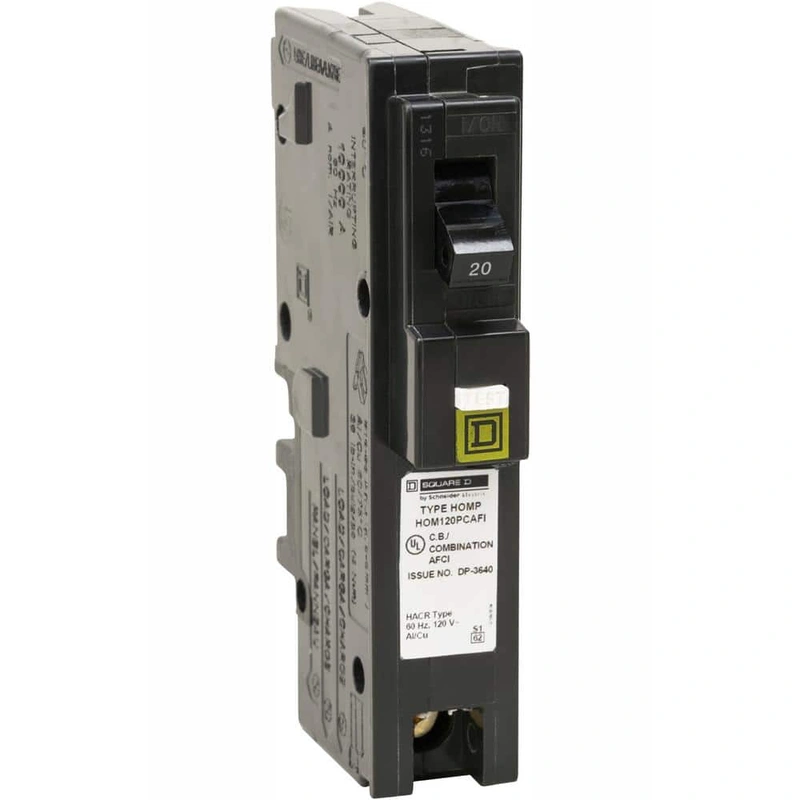

Square D Homeline 20 Amp Arc Fault Circuit Breaker The Square D Homeline 20 Amp Single-Pole Plug-On Neutral Combination Arc Fault Circuit Breaker offers state-of-the-art arc detection technology that quickly trips when a dangerous arc is detected, ensuring
The Square D Homeline 20 Amp Single-Pole Plug-On Neutral Combination Arc Fault Circuit Breaker offers state-of-the-art arc detection technology that quickly trips when a dangerous arc is detected, ensuring maximum safety for both electrical devices and wiring systems. Designed for quick installation and enhanced reliability, it integrates seamlessly with Homeline Plug-On Neutral panels, reducing wiring complexity and installation time. Built by Square D, known for quality and innovation, this circuit breaker combines advanced safety features with dependable short circuit and overload protection.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Pigtail |
| Interruption Type | AFCI |
| Maximum Amperage (A) | 20 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.67 lb |
| Series Type | Homeline |
| Trip Unit | Electronic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 1 in |
Q: How does the arc detection technology work?
A: The arc detection technology continuously monitors the circuit for unsafe arcing conditions and trips the breaker immediately to prevent damage or hazards.
Q: Can this breaker be used in any electrical panel?
A: This breaker is specifically compatible with Homeline Plug-On Neutral electrical panels by Square D for optimal installation and performance.
Q: What makes Plug-On Neutral breakers advantageous?
A: Plug-On Neutral breakers eliminate the need for pigtail connections, reducing clutter, installation complexity, and time.
Q: Is there a warranty for this product?
A: Yes, Square D provides a limited lifetime warranty for defects in materials and workmanship within residential installations.
Q: Does this breaker include any diagnostic features?
A: Yes, it features time-saver diagnostics that help identify fault sources quickly, enhancing the troubleshooting process.
The Square D Arc Fault Circuit Breaker transforms your homes power system with its sleek incorporation of cutting-edge safety technology. Its minimalist design not only saves space but also enhances user-friendliness no more tangled wires. Its intelligent diagnostics create a seamless user experience, making it a standout in modern electrical solutions. Elevate your home by integrating this innovative circuit breaker, ensuring safety with style the epitome of luxurious smart living.
Secure your homes electrical system with the Square D Homeline Arc Fault Circuit Breaker and experience peace of mind with every connection.
