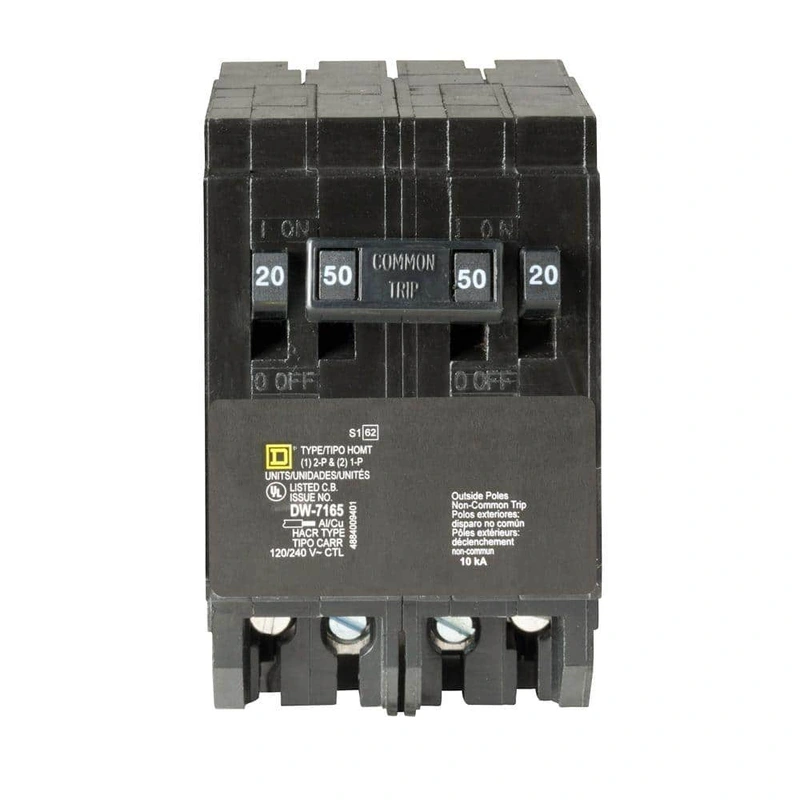

Quad Tandem Circuit Breaker The Square D Homeline Quad Tandem Circuit Breaker is a compact and efficient solution for protecting your home's electrical circuits. With two single-pole 20 Amp and one double-pole 50 Amp breaker integrated into one unit, this
The Square D Homeline Quad Tandem Circuit Breaker is a compact and efficient solution for protecting your home’s electrical circuits. With two single-pole 20 Amp and one double-pole 50 Amp breaker integrated into one unit, this device provides reliable overload and short-circuit protection. Its plug-on design ensures easy installation, making it ideal for pros and DIYers alike.
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 20 A |
| Breaker Type | Quadplex |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.85 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 2 in |
Q: Is this circuit breaker suitable for both 120V and 240V systems?
A: Yes, the Square D Homeline Quad Tandem Circuit Breaker is rated for use in both 120V and 240V AC systems.
Q: How is this breaker installed?
A: The breaker features a plug-on design that allows for easy installation in Square D Homeline load centers and compatible devices. Ensure your electrical panel is de-energized before installation.
Q: Does this breaker have a warranty?
A: Yes, it comes with a limited lifetime warranty against defects in material and workmanship under normal residential installation conditions.
Q: Can this breaker be used for commercial applications?
A: While it’s designed for residential use, it may be suitable for light-duty commercial applications where compatible with the Homeline series.
Q: What is the AIR rating of this breaker?
A: The Square D Homeline Quad Tandem Circuit Breaker has an AIR rating of 10,000, indicating its capacity to withstand high currents during a short-circuit event.
When your space demands reliability wrapped in compact elegance, the Square D Homeline Quad Tandem Circuit Breaker steps boldly to the fore. Infused with seamless functionality and effortless installation, it ensures your home’s energy flow is both stylish and secure. Picture thisa streamlined circuit solution, marrying form with unparalleled performance, ready to serve as the unseen hero in your state-of-the-art dwelling. With this breaker, elevate every facet of your space, ensuring safety is always in vogue.
Ensure your home’s electrical protection is top-notchexplore the Square D Homeline Quad Tandem Circuit Breaker today!
