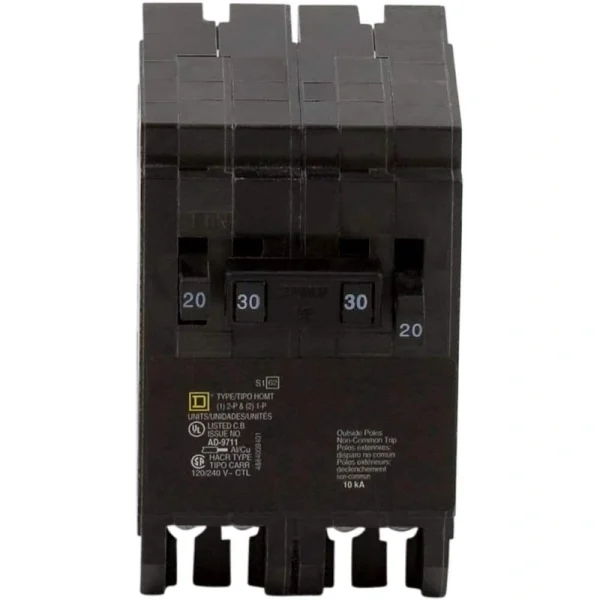

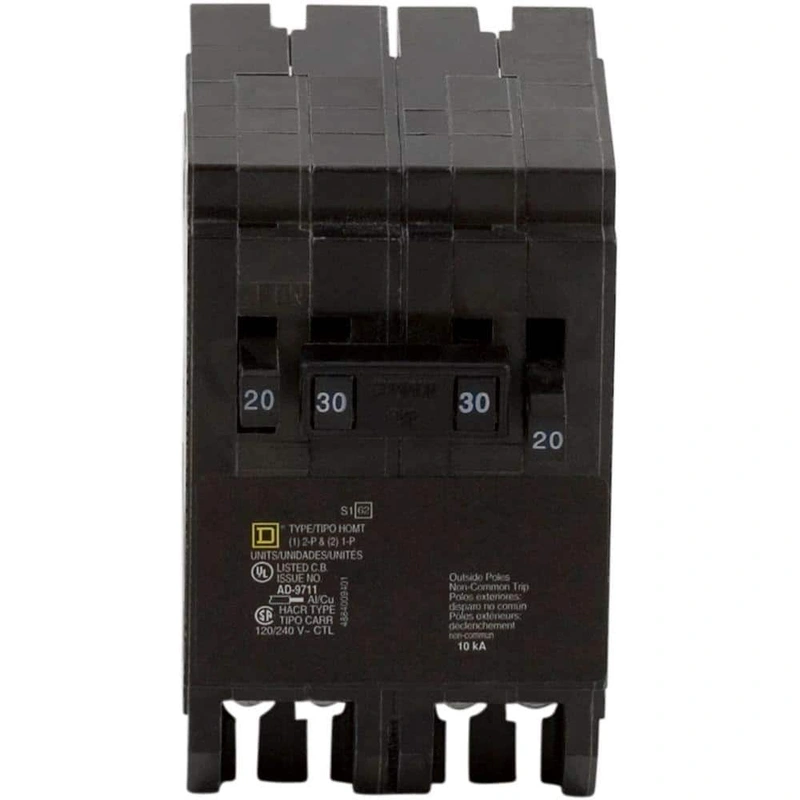

Square D Homeline Quad Tandem 2-20/1-30 Amp Circuit Breaker The Square D Homeline Quad Tandem Circuit Breaker is an efficient choice for residential power distribution. Featuring (2) single-pole 20 Amp and (1) double-pole 30 Amp breakers, this unit occupie
The Square D Homeline Quad Tandem Circuit Breaker is an efficient choice for residential power distribution. Featuring (2) single-pole 20 Amp and (1) double-pole 30 Amp breakers, this unit occupies only two spaces in your panel, offering reliable protection against overloads and short circuits. ANSI-certified and UL-listed, it ensures peace of mind with robust construction and proven Square D quality.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 20 A |
| Breaker Type | Quadplex |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.85 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 2 in |
Q: Is this circuit breaker compatible with all Square D panels?
A: This breaker is specifically designed for compatibility with Square D Homeline load centers and CSED devices that accommodate two-space designs.
Q: What is the purpose of a quad tandem configuration?
A: The quad tandem design allows for more circuit configurations in limited panel spaces, efficiently utilizing the available space in your breaker box.
Q: What safety certifications does this breaker have?
A: It is ANSI-certified and UL-listed, ensuring it meets national safety standards for residential use.
Q: Can this circuit breaker be used outdoors?
A: This breaker is intended for indoor residential use within compatible load centers.
Q: What happens if the breaker trips frequently?
A: Frequent tripping may indicate an overloaded circuit or potential wiring issues. It’s recommended to consult with a licensed electrician if this occurs.
Transforming the way you manage your home’s electricity, the Homeline Quad Tandem Circuit Breaker by Square D offers seamless integration with your existing electrical panel. The sleek and efficient design maximizes your panel’s connectivity, ensuring your home stays powered while maintaining refined aesthetics. Introduce this game-changing electrical solution into your homes infrastructure for a harmonious blend of function and form. Elevate your living spaces with cutting-edge technology that’s essential for secure and stylish modern living.
Harness the full potential of your electrical system with the Square D Homeline Quad Tandem Circuit Breakerorder today for unmatched safety and efficiency.
