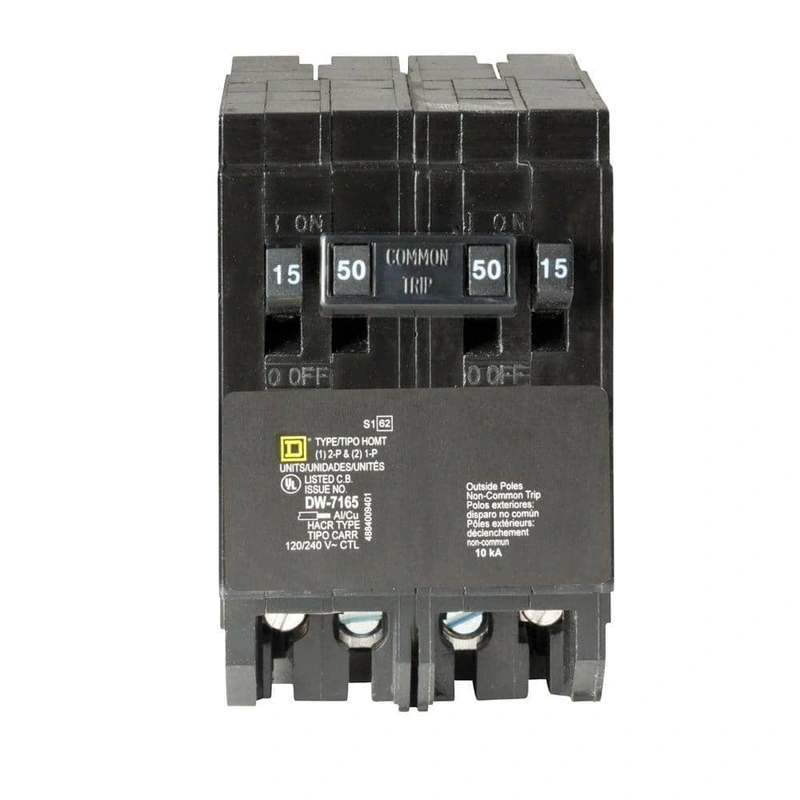

Square D Homeline Quad Tandem Circuit Breaker The Square D Homeline Quad Tandem Circuit Breaker is a versatile solution for residential electrical systems, offering superior protection against overloads and short-circuits. With dual single-pole and one dou
The Square D Homeline Quad Tandem Circuit Breaker is a versatile solution for residential electrical systems, offering superior protection against overloads and short-circuits. With dual single-pole and one double-pole configuration, it optimizes space and efficiency. The plug-on design ensures quick installation with Homeline electrical panels and CSED devices, making it an excellent choice for professional contractors and DIY enthusiasts alike.
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 15 A |
| Breaker Type | Quadplex |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.91 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 2 in |
Q: Is the Homeline Quad Tandem Circuit Breaker compatible with all electrical panels?
A: This breaker is compatible with Square D Homeline electrical panels and CSED devices. It may not fit other brand panels, so it’s essential to check compatibility with your system.
Q: Can I install this circuit breaker myself, or do I need professional assistance?
A: While the plug-on design facilitates easy installation, professional installation is recommended to ensure safety and compliance with electrical standards.
Q: What is the advantage of using a quad tandem circuit breaker?
A: A quad tandem circuit breaker maximizes panel space by allowing more circuits within a limited number of slots, providing efficient electrical distribution.
Q: How does this breaker protect against electrical hazards?
A: It provides protection against overloads and short-circuits through a thermal magnetic trip unit, ensuring your electrical system operates safely.
Q: Does this breaker have any certifications?
A: Yes, it is ANSI-certified and UL-listed, ensuring it meets safety and performance standards.
Imagine a home where seamless electrical flow harmonizes with your distinct design sensibilities. The Square D Homeline Quad Tandem Circuit Breaker emerges as the unsung hero, brilliantly safeguarding your sanctuary with precision and style. Its compact prowess allows elegant integration into discreet spaces, enhancing both form and function. Envision it concealed behind beautifully crafted panels, yet indispensable to your modern-day symphony of light and power. Essential and understated, it’s the invisible foundation of luxurious living that resonates with your sophisticated taste.
Ensure seamless and safe electrical distribution in your home today with the Square D Homeline Quad Tandem Circuit Breaker.
