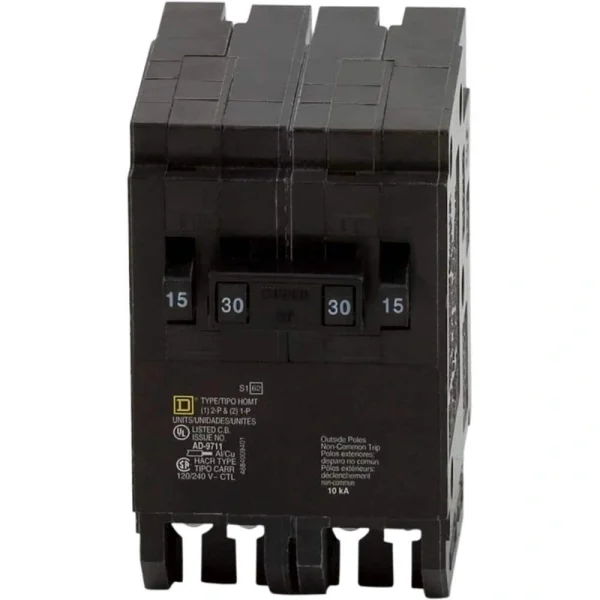

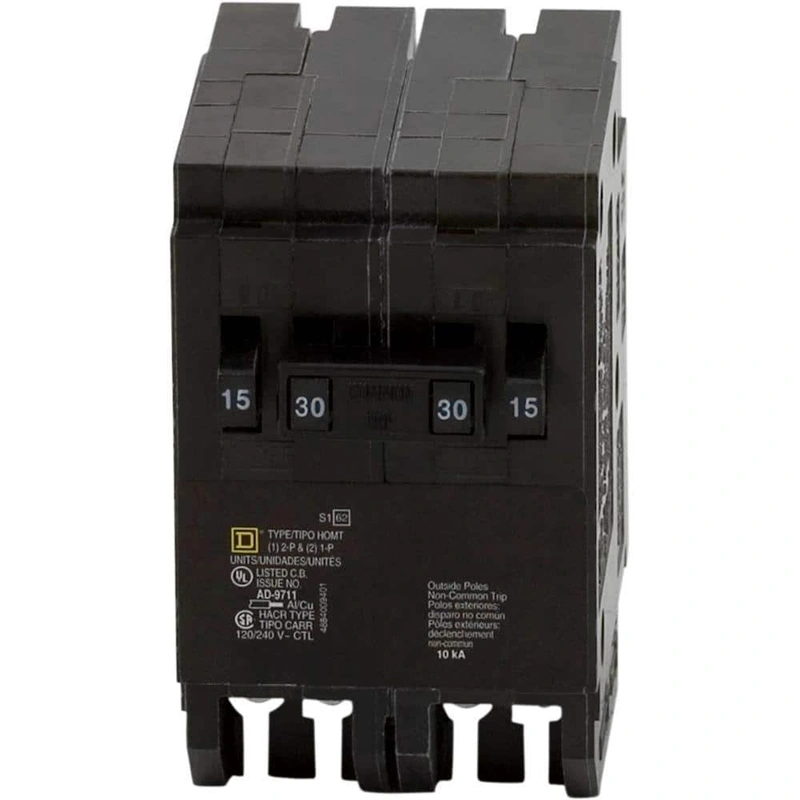

Homeline Quad Tandem Circuit Breaker The Square D Homeline Quad Tandem Circuit Breaker efficiently manages your home's electrical distribution with two 15 Amp single-pole and one 30 Amp double-pole breakers. Designed for compatibility with Homeline load ce
The Square D Homeline Quad Tandem Circuit Breaker efficiently manages your home’s electrical distribution with two 15 Amp single-pole and one 30 Amp double-pole breakers. Designed for compatibility with Homeline load centers, it saves panel space by requiring only two pole spaces while providing robust protection against overloads and short-circuits. With a 10,000 AIR rating, this ANSI-certified and UL-listed breaker offers reliable performance and is backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 15 A |
| Breaker Type | Quadplex |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.85 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 2 in |
Q: How do I install the Square D Homeline Quad Tandem Circuit Breaker?
A: Installation is straightforward with the plug-on design. Ensure your electrical panel is compatible and always follow the manufacturer’s instructions and safety guidelines.
Q: What is the warranty on this circuit breaker?
A: Square D warrants this breaker for the lifetime of the Homeline load center, against material defects and workmanship under normal residential use.
Q: Can I use this breaker in a commercial setting?
A: This breaker is primarily designed for residential applications. For commercial implementation, ensure compliance with local electrical codes.
Q: What does ‘10,000 AIR’ mean?
A: AIR stands for Amperes Interrupting Rating, and a 10,000 AIR indicates the breaker can safely interrupt a circuit with a current surge up to 10,000 amperes.
Imagine a home where every device runs effortlessly, thanks to seamless electrical management. The Square D Homeline Circuit Breaker embodies efficiency and reliability, elegantly tucking away into your electrical panel with a space-saving solution. Its quad design simplifies complex wiring demands, creating an enviable blend of form and function. This breaker is not just a necessity; it’s the silent hero behind modern living, ensuring every corner of your home shines brightly.
Ensure your home’s electrical safety and efficiency with the Square D Homeline Quad Tandem Circuit Breakerengineered for excellence and reliability.
