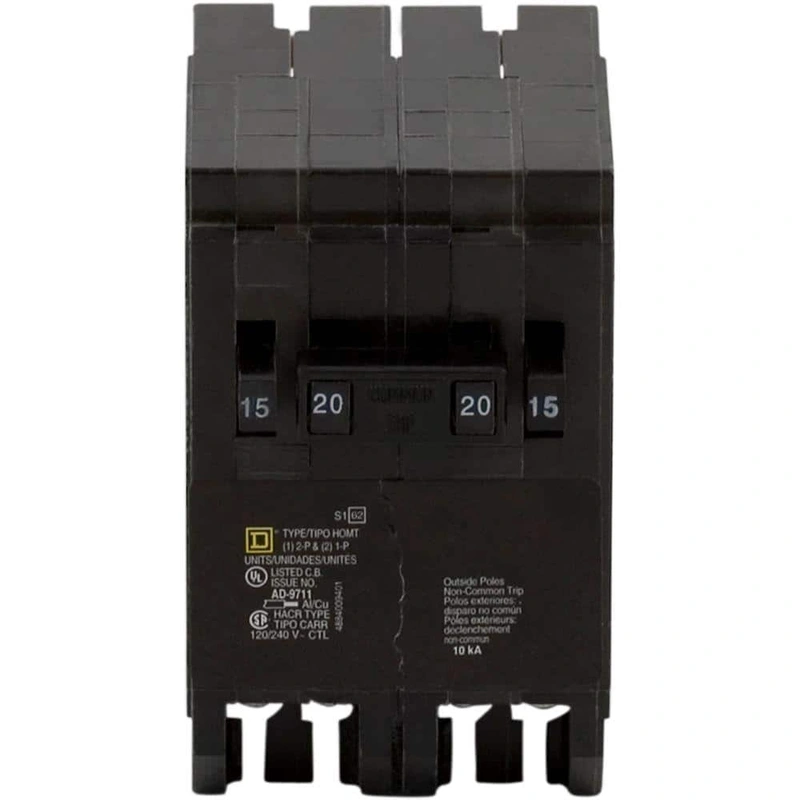

Square D Homeline Quad Circuit Breaker The Square D Homeline Quad Circuit Breaker offers unmatched reliability with its dual single-pole and double-pole functionality, making it an ideal choice for residential electrical systems. This breaker protects agai
The Square D Homeline Quad Circuit Breaker offers unmatched reliability with its dual single-pole and double-pole functionality, making it an ideal choice for residential electrical systems. This breaker protects against overloads and short-circuits, while fitting seamlessly into Homeline load centers and CSED devices. Trust in the innovation and quality of Square D for a cost-effective solution in power distribution.
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 15 A |
| Breaker Type | Quadplex |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.85 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) | 2.98 in |
| Product Height (in.) | 3.13 in |
| Product Width (in.) | 2 in |
Q: How do I install this circuit breaker?
A: This circuit breaker features a plug-on design for easy installation in compatible Homeline load centers. Always ensure the power is off before installation and consult an electrician if you are unsure.
Q: Is this breaker compatible with my existing panel?
A: Check whether your panel is a Homeline load center or CSED device as this breaker is designed specifically for these models. Refer to your panels specifications or consult a professional.
Q: What is the operating voltage of this breaker?
A: The Square D Homeline Quad Circuit Breaker operates at 120/240 VAC.
Q: What kind of protection does this breaker provide?
A: It offers thermal magnetic protection against both overloads and short-circuits, enhancing safety and reliability.
Q: Does this breaker come with a warranty?
A: Yes, Square D provides a limited lifetime warranty for defects under normal residential usage.
The Square D Homeline Quad Circuit Breaker revolutionizes residential electricity distribution, seamlessly merging advanced safety with exquisite design. Lovingly crafted to fit snugly within your home’s circuit space, it offers both aesthetic balance and unmatched functionality. This breaker is the unsung hero, safeguarding your appliances and ensuring a harmonious flow of energy. Integrate it as a vital yet unseen component of your luxury living environment, where elegance and precision coalesce.
Ensure your home’s electrical safety and efficiency with the Square D Homeline Quad Circuit Breakerpower your projects with peace of mind today!
