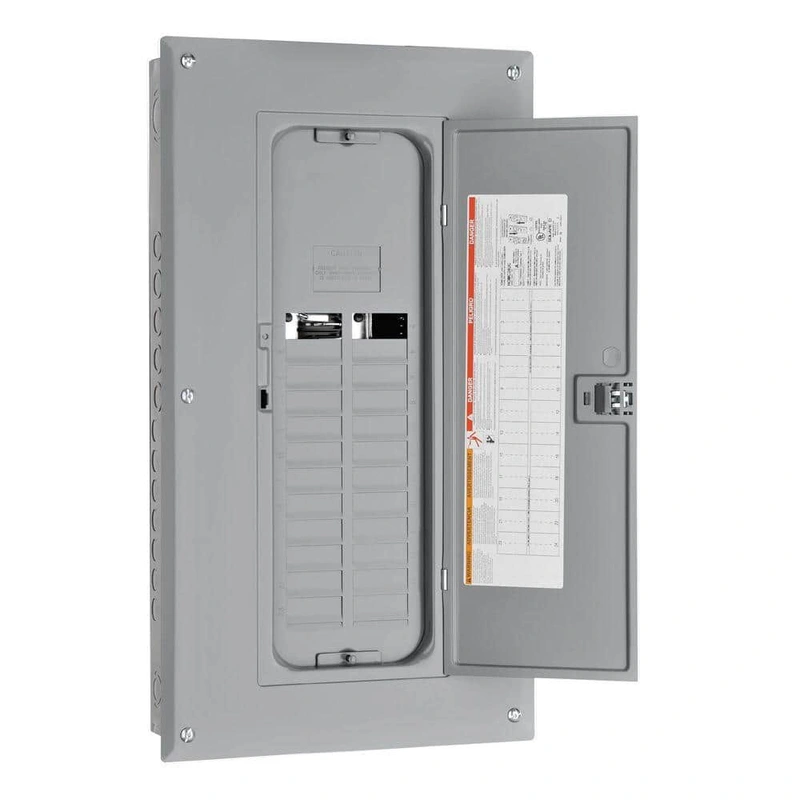

Square D Homeline 125 Amp Electrical Panel The Square D Homeline 125 Amp Main Lug Electrical Panel is designed for efficient power distribution in residential and commercial settings. With its easy plug-on neutral feature, it facilitates faster installatio
The Square D Homeline 125 Amp Main Lug Electrical Panel is designed for efficient power distribution in residential and commercial settings. With its easy plug-on neutral feature, it facilitates faster installation while minimizing wiring. This robust panel supports up to 20 spaces and 40 circuits, making it ideal for various electrical setups.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Electrical Product Type | Main Lug/ Main Lug Kit |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 125 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 40 |
| Number of Spaces | 20 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 24.2 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 26.04 in |
| Product Width (in.) | 14.25 in |
Q: Can this electrical panel be used for both overhead and underground feeds?
A: Yes, the panel can accommodate both feed types by simply being rotated before installation.
Q: Is the ground bar included with the panel?
A: Yes, the panel comes with a PK15GTAL ground bar for easy setup.
Q: What kind of breaker is compatible with this panel?
A: This panel is compatible only with Square D Homeline circuit breakers.
Q: Can I convert this panel to a main breaker load center?
A: Yes, it can be converted using a QOM1 main breaker, which is sold separately.
Q: What is the warranty for this product?
A: The panel has a 10-year warranty against defects in material and workmanship when used with Square D Homeline branch circuit breakers.
Transform the functional into beautiful with the Square D Homeline Electrical Panel. Its sleek and unobtrusive design merges seamlessly into any interior, offering an understated elegance while providing powerful functionality. Opt for an art-meets-engineering installation by showcasing it within a utility-focused space. This panel isn’t just about practicalityit’s an essential element of refined living, where form meets indispensable function.
Streamline your electrical installations with the Square D Homeline 125 Amp Electrical Panel for ultimate efficiency and reliability.
