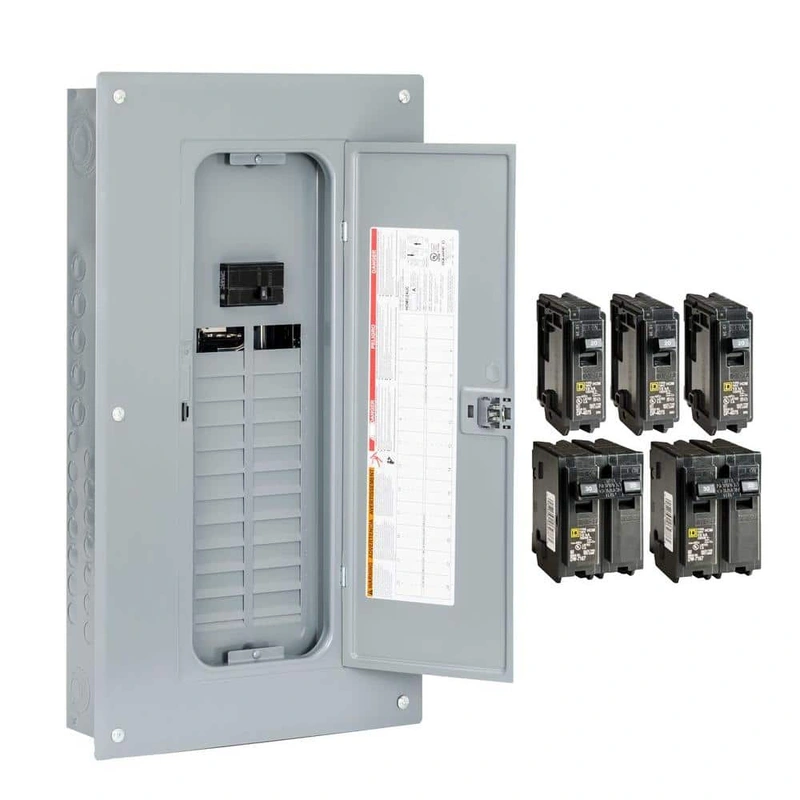

Square D Homeline 100 Amp Main Breaker Load Center The Square D Homeline 100 Amp Indoor Main Breaker Load Center offers efficient power distribution with its 24-space, 48-circuit capacity. This reliable load center is designed for seamless installation, fe
The Square D Homeline 100 Amp Indoor Main Breaker Load Center offers efficient power distribution with its 24-space, 48-circuit capacity. This reliable load center is designed for seamless installation, featuring an innovative Plug-On Neutral technology that reduces wiring clutter and maximizes safety.
Please check the Product Data Sheet Here
| Specification | Details |
|---|---|
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Neutral |
| Electrical Product Type | Load Center and Breaker Kit |
| Included | Circuit Breaker,Cover |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 48 |
| Number of Pieces | 6 |
| Number of Spaces | 24 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 27.86 lb |
| Series Type | Homeline |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 26.04 in |
| Product Width (in.) | 14.25 in |
Q: Can this load center be used for both overhead and underground feeds?
A: Yes, the design allows for easy accommodation of both overhead and underground feed systems by rotating the device during installation.
Q: Is the panel suitable for outdoor installation?
A: This particular model is designed for indoor use only, adhering to NEMA 1 standards.
Q: What type of breakers can be used with this load center?
A: It’s compatible with Square D Homeline full-size, tandem, or quad breakers, ensuring flexibility for various circuit needs.
Q: How many circuits can this panel handle?
A: This Homeline model supports up to 48 circuits, making it a versatile choice for larger applications.
Q: What is the warranty for this product?
A: Square D offers a 10-year warranty against defects in material and workmanship for residential applications with proper usage.
Make an unexpected style statement in your utility room with the Square D Homeline Load Center. Its sleek, minimalistic design becomes an ideal anchor for an uncluttered, modern aesthetic. Position this panel against a contrasting wall for a bold impact, pairing it with streamlined cabinetry in neutral tones for added sophistication. Essential for elevated living, the Homeline load center not only manages your home’s electrical distribution with precision but also blends seamlessly into contemporary interior designs.
Elevate your electrical system with the Square D Homeline Load Centerstreamlined, reliable, and designed for effortless installation.
