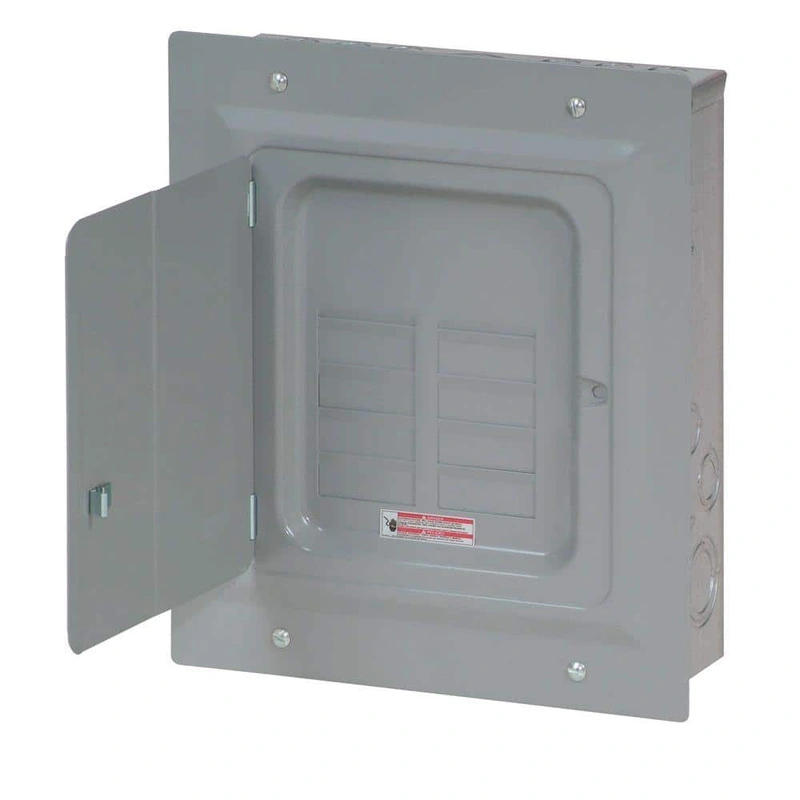

Eaton 125 Amp Indoor Subpanel with Flush Door The Eaton 125 Amp BR Loadcenter is a versatile, sub-panel solution for expanding your home's electrical system. Featuring 8 spaces for up to 16 circuits, this indoor main lug loadcenter provides efficient and s
The Eaton 125 Amp BR Loadcenter is a versatile, sub-panel solution for expanding your home’s electrical system. Featuring 8 spaces for up to 16 circuits, this indoor main lug loadcenter provides efficient and safe power distribution, making it ideal for workshops, garages, or home additions.
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Electrical Product Type | Main Lug/ Main Lug Kit |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 125 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 16 |
| Number of Spaces | 8 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 13 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Years |
| Product Depth (in.) | 3.56 in |
| Product Height (in.) | 13 in |
| Product Width (in.) | 11 in |
Q: What is the purpose of a sub-panel?
A: A sub-panel adds additional circuits to an existing system, distributing power to specific areas like garages or additions without overloading the main panel.
Q: How is this loadcenter installed?
A: The Eaton BR loadcenter is mounted flush against the wall. Keyhole slots at the top facilitate leveling and securing during installation.
Q: What types of breakers are compatible with this panel?
A: This panel uses Eaton Type BR breakers, ensuring consistent performance and safety.
Q: Can this panel be used outdoors?
A: No, this panel is rated NEMA 1 for indoor use only and is not suitable for wet or outdoor environments.
Q: What is the warranty on this loadcenter?
A: Eaton offers a 10-year limited warranty, providing peace of mind with quality assurance.
In the intricate dance of home design and functionality, the Eaton 125 Amp Indoor Subpanel stands as an unsung hero, delivering seamless electrical harmony. Its streamlined flush door complements modern interiors, hiding its robust utility behind a sleek facade. Imagine this sub-panel elegantly tucked away in a workshop or garage, quietly powering your creative ventures. A symbol of reliability and efficiency, it’s a part of the infrastructure that turns a house into a well-oiled machine, essential for any fine-tuned, luxurious living environment.
Ensure your power distribution is as effective as your projects; invest in the reliable Eaton 125 Amp Indoor Subpanel today.
