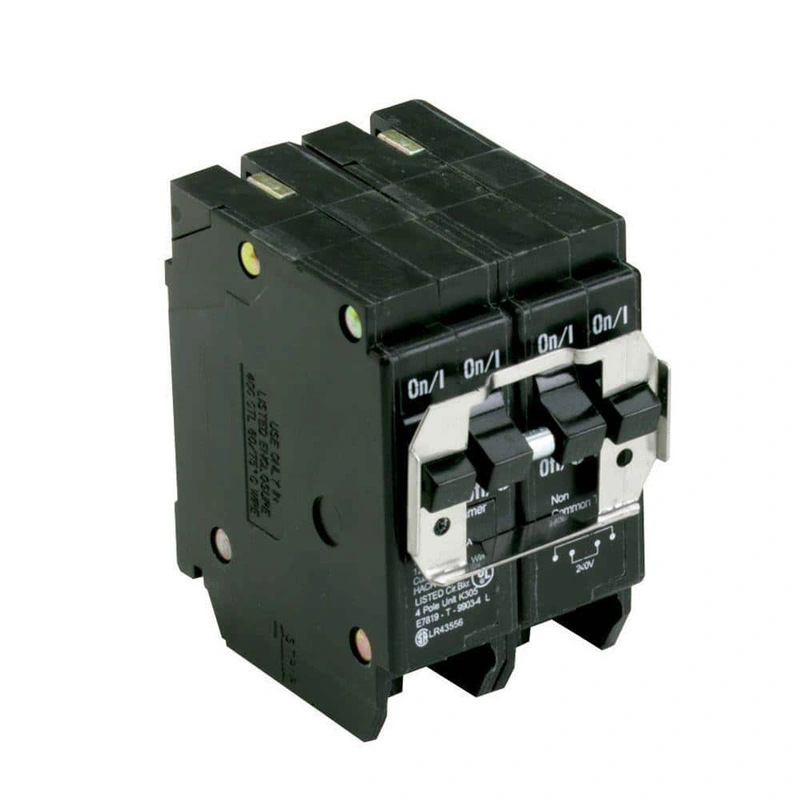

Eaton Quad Circuit Breaker with Common Trip

The Eaton BR Quad Circuit Breaker with a common trip is designed for seamless installation in BR load centers, enabling the creation of four circuits using just two spaces. This quad breaker offers reliable protection against both overloads and short circuits, with an innovative rejection tab feature ensuring safety and compliance. Perfect for residential and light commercial applications, it’s a durable, UL-approved replacement for Westinghouse, Challenger, and Bryant panels.

Key Features:

• Common Trip: Simultaneous disconnection of load for enhanced safety.
• Quad Design: Supports creation of 4 circuits in 2 spaces, maximizing panel capacity.
• Rejection Tab: Ensures correct alignment and prevents incorrect installations.
• Durable Construction: Designed for long-lasting performance in BR type centers.
• UL Certified: Meets stringent safety standards for your peace of mind.

Specifications Table:

Frequently Asked Questions (FAQ):

Q: What load centers are compatible with this circuit breaker?
A: This circuit breaker is compatible with BR type load centers and is an approved replacement for panels by Westinghouse, Challenger, and Bryant.

Q: How does the common trip feature benefit me?
A: The common trip feature ensures all connected circuits disconnect simultaneously, providing added safety in the event of a fault.

Q: What wire sizes are compatible with this breaker?
A: It accepts wire sizes #14-4 AWG Cu/Al, fitting comfortably at both 60C and 75C.

Q: Is this circuit breaker easy to install?
A: Yes, it features a plug-on mounting type for straightforward installation in compatible panels.

Q: Does the breaker have any certifications?
A: Yes, this Eaton circuit breaker is UL Listed, CSA Listed, and ANSI Certified, ensuring high safety and performance standards.

Elegant Efficiency in Electrical Design

Transform your spaces with the Eaton Quad Circuit Breaker, merging function with flair. Its streamlined design not only ensures electrical safety but also enhances the overall functionality of your living areas. The distinctive common trip feature sets it apart, embodying both technological sophistication and practical safety. Embrace this device as a vital component in crafting a seamless, luxurious living environment, where peace of mind and style coexist beautifully.

Ensure your electrical systems are safely protectedupgrade to the Eaton Quad Circuit Breaker today!
