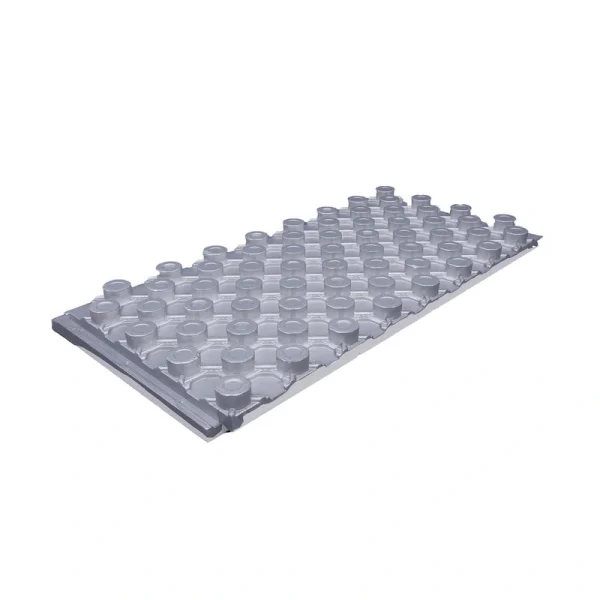

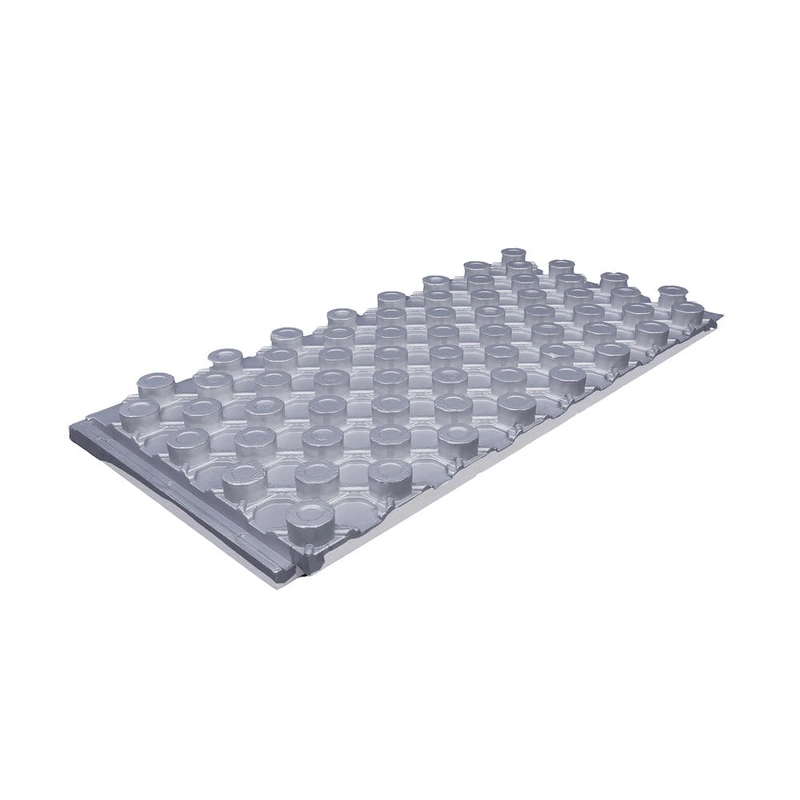

AMPEX R-10 (30 PSI) Radiant Heat Insulation Board

Product Overview The AMPEX R-10 Radiant Heat Insulation Board is a high-performance insulation solution engineered to optimize energy efficiency and reduce costs in both residential and commercial settings. With a robust compressive strength of 30 PSI, this board provides exceptional durability and thermal insulation. Measuring 3.375″ x 25.25″ x 49.25″, it is designed to deliver maximum performance and reliability across various applications. The AMPEX R-10 combines strength, efficiency, and ease of installation to meet modern insulation needs.

Key Features

• Integrated Design: Combines rigid insulation, a vapor barrier, and a pipe locking mechanism for streamlined installation and reduced labor costs.
• Material Composition: Constructed with molded expanded polystyrene (EPS) and a high-impact polystyrene (HIPS) film, offering strength and resilience.
• Versatile Applications: Suitable for hydronic radiant floor systems, and applicable in both interior and exterior settings, including basements, driveways, garages, workshops, and barns.
• Efficient Installation: Features a consistent 3″ grid pattern and an interlocking shiplap connector system, eliminating the need for staples and additional vapor barriers.
• High Thermal Resistance: Provides a thermal resistance of 10 BTU, ensuring effective insulation.

Please check the Product Data Sheet Here

Specifications

Frequently Asked Questions

• What makes the AMPEX R-10 Insulation Board unique?

  • The AMPEX R-10 board stands out for its integrated design, combining insulation, a vapor barrier, and a pipe locking mechanism, which reduces installation time and labor costs. It also offers high compressive strength and thermal resistance for reliable performance.

• Can this insulation board be used outdoors?

  • Yes, the AMPEX R-10 is suitable for both interior and exterior applications, including areas like driveways and garages.

• Is a separate vapor barrier required with this insulation board?

  • Typically, no separate vapor barrier is needed due to the integrated design of the board, unless local building codes specify otherwise.

• What is the coverage area of each board?

  • Each board covers an area of 8.64 square feet.

• Are there any specific installation requirements?

  • The board features a 3″ grid pattern and an interlocking shiplap connector system, which simplifies the installation process and eliminates the need for staples.
